• High Speed Laboratory Mixers for optimal mixing of middle and high viscosity products

TRY IT OUT . . .

Laboratory Vacuum mixer
Download the New Brochure, pdf 3 mb

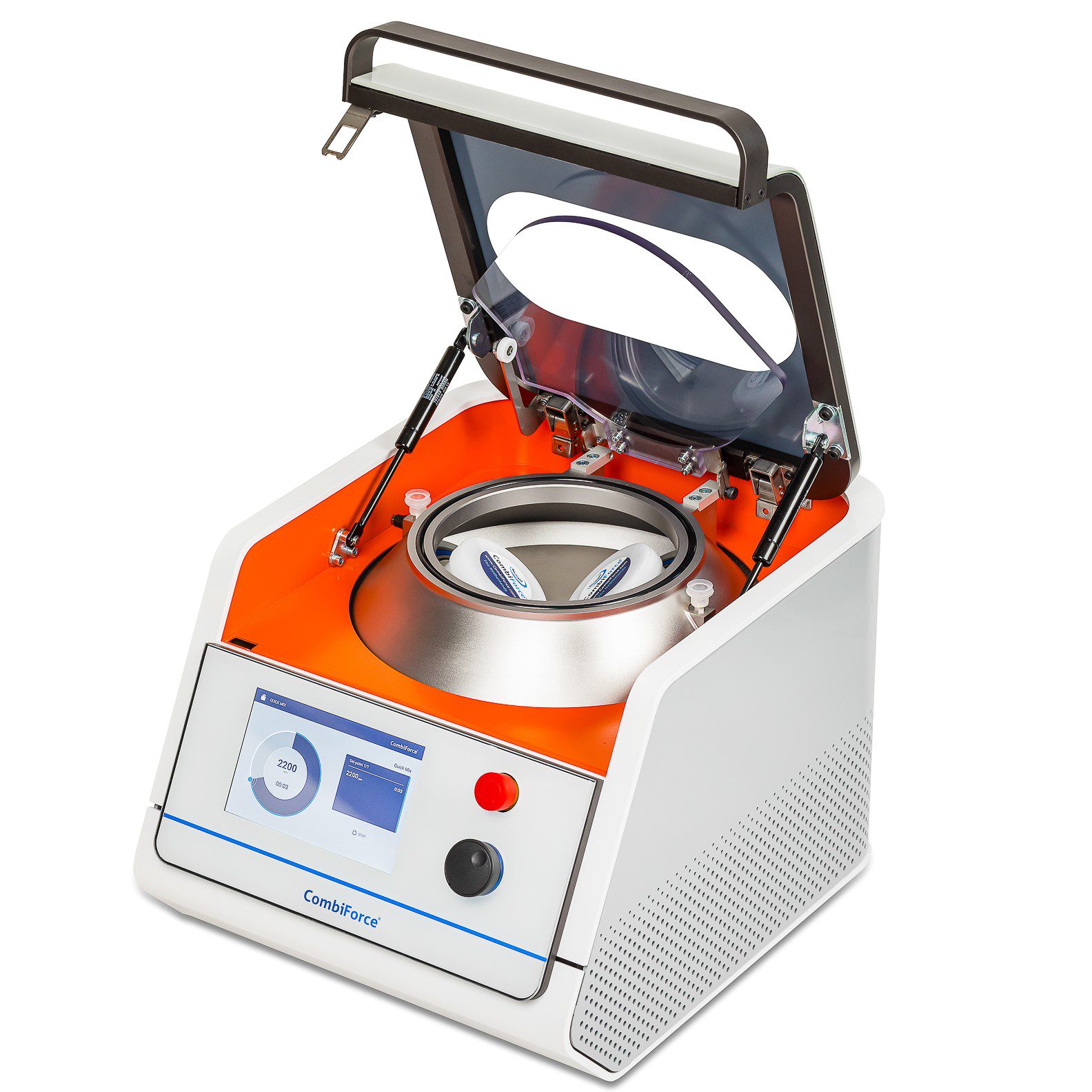

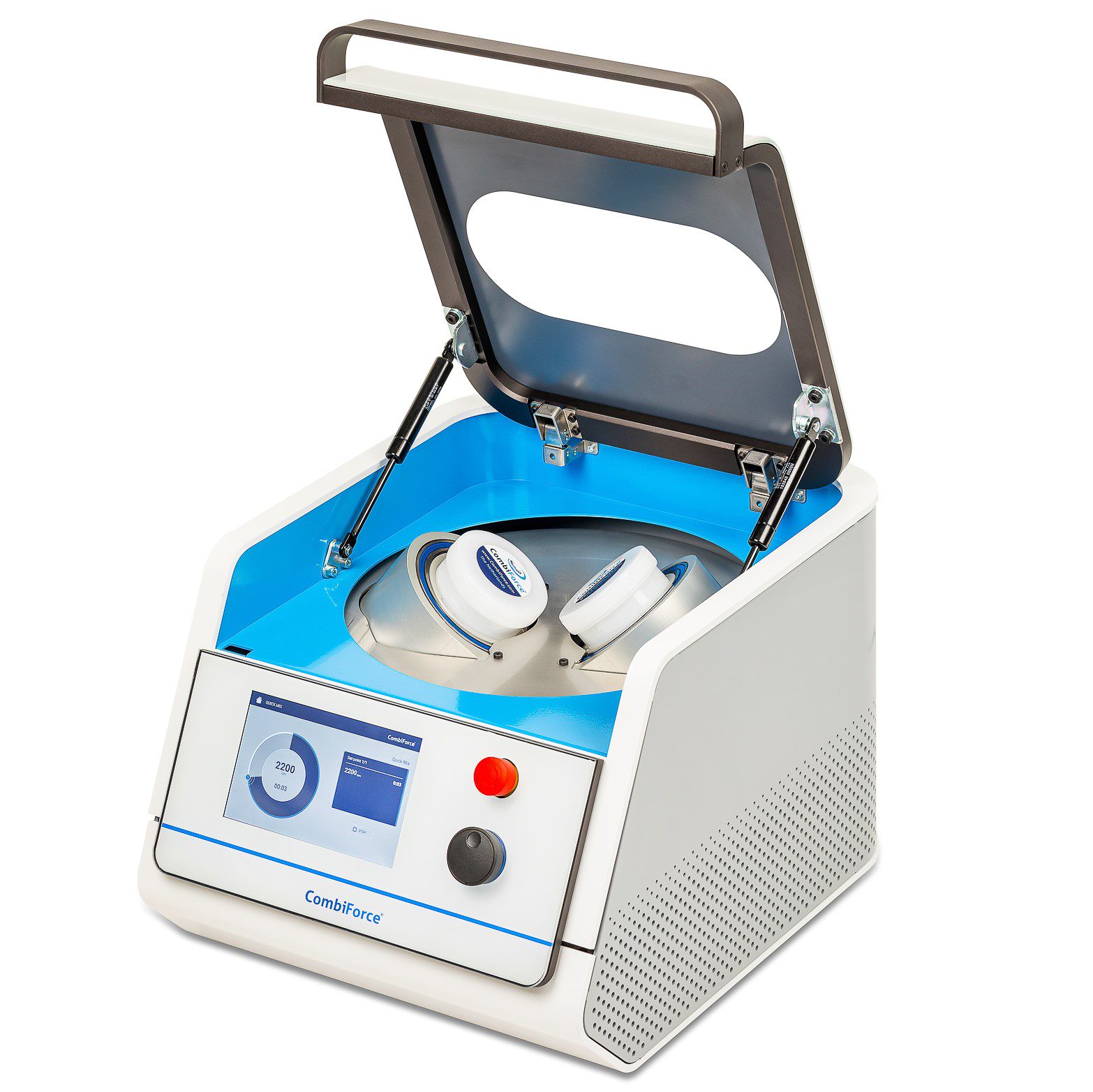

COMBIFORCE® High Speed Planetary Mixers

Labmixer b.v. is proud to announce the latest design of the new high-speed planetary centrifugal mixer CombiForce®  with new features and a new modern design. Your mixing process 100% under control. In order to achieve a reproducible mix of medium and high viscosity products independent of the operator, you can choose very easily one of the stored programs according to your recipe. To improve and optimize your formula, you can adjust different set points of Speed, Time, Vacuum and Cooling.

Mixing direct in the container without any contamination, no cleaning time

The main advanced features :

> Perfect for Mixing liquids and Powders from 10 grams to 1000 grams within 60 seconds.
> Use adaptors for your specific container or disposable cups
> New bright and user-friendly 7″ full colour touchscreen
> One command controller make setpoints easy at different speeds and time
> Store your standard work
> Set deep vacuum (option)
> Mixer made with Hardened Glass Front and Lid for easy cleaning
> New compact and modern design
> Easy Sampling and Quality control of your mixing process.
> CombiForce® High Speed Mixer takes your product to a higher quality level

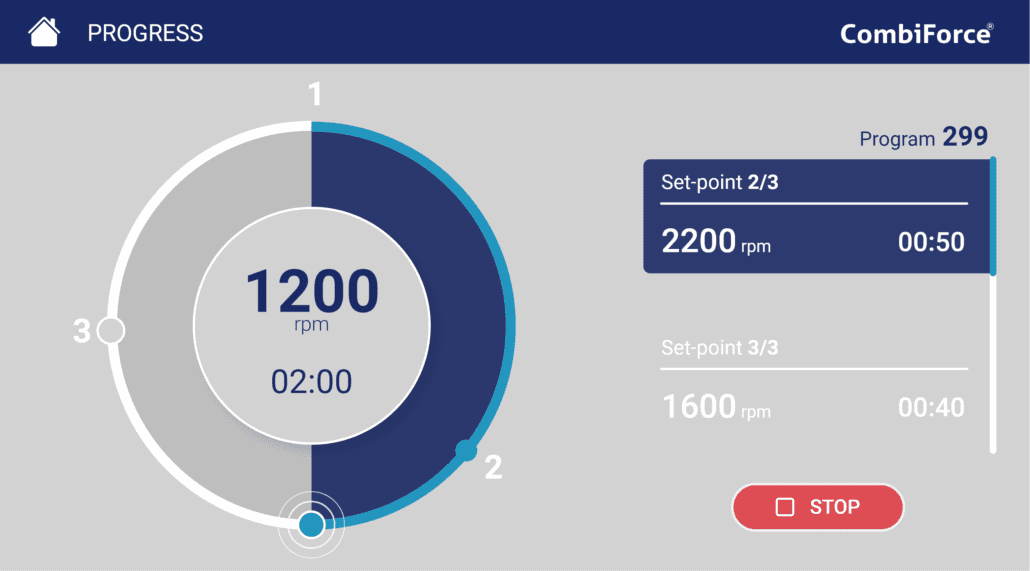

Touch-friendly Screen

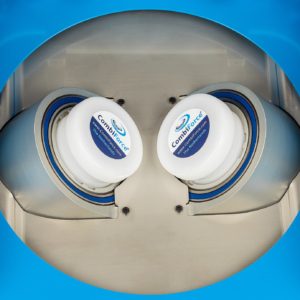

centrifugal planetary mixing

Control your mixing parameters and develop new formulations and new process improvements

Technical Details CombiForce® High Speed Mixer

CombiForce® High Speed Planetary Mixers
CombiForce® CF1
Single Cupholder
order code : 00710		CombiForce® CF2
Double cupholder
order code : 00810		CombiForce® CF2 Double cupholder including Vacuum
order code : 00812
Volumefrom 3 ml. up to 300 mlfrom 3 ml. up to 600 mlfrom 3 ml. up to 600 ml
HPDE Mixing Container
With screw cap and inner lid.
Colour: white glossy
1x 300 ml. container is included
Dimensions: 76 x 89 ø x H mm.
Nett weight: 64 gram		2x 300 ml. container are included
Dimensions: 76 x 89 ø x H mm.
Nett weight: 64 gram		2x 300 ml. container are included
Dimensions: 76 x 89 ø x H mm.
Nett weight: 64 gram
Max. gross weight to process = weight of the mixingcup + material (+ adapter)300 grams600 grams600 grams
Adjustable Speedfrom 0 till 2500 RPMfrom 0 till 1350 RPMfrom 0 till 1350 RPM
Countdown Timer with automatic stopfrom 0 till 30 minutesfrom 0 till 30 minutesfrom 0 till 30 minutes
Power Supply | Single Phase230V ±10% 50/60 Hz | 0.75 kW230V ±10% 50/60 Hz | 1.10 kW230V ±10% 50/60 Hz | 1,10 kW
Programmable control system
TOUCH-FRIENDLY SCREEN		Set points and Speed free programmable by the user-friendly touch screenSet points and Speed free programmable by the user-friendly touch screenVacuum set point and Speed free programmable by the user-friendly touch screen
Number of Programs
The operator can make 100 different customized programsThe operator can make 100 different customized programsThe operator can make 100 different customized programs
Number of SetpointsEach program is adjustable with 10 different set points (in speed and time)Each program is adjustable with 10 different set points (in speed and time)Each program is adjustable with 10 different set points (in speed and time)
Vacuum version––down to 1mbar
External Dimensions
with closed lid and open lid		288 x 365 x 290/ 515 mm.
Width x Depth x Height		385 x 475 x 320/ 660 mm.
Width x Depth x Height		385 x 475 x 320/ 660 mm.
Width x Depth x Height
Cooling VersionOPTIONOPTIONOPTION
Atex (Explosion Proof) versionOPTIONOPTIONOPTION
Nett Weight45 kg65 kg75 kg
Safety according to CEConformity Directive 2006/42/EC
* Emergency stop
* Automatic cover lock
Operation not possible if the mixer cover is in open position		Conformity Directive 2006/42/EC
* Emergency stop
* Automatic cover lock
Operation not possible if the mixer cover is in open position		Conformity Directive 2006/42/EC
* Emergency stop
* Automatic cover lock
Operation not possible if the mixer cover is in open position
Article Number*AVAILABLE APRIL 2023
CombiForce® CF1
Single Cupholder
order code : 00710
CombiForce® CF2
Double cupholder
order code : 00810
CombiForce® CF2 Vacuum
Double cupholder include vacuum option
order code : 00812
  • We offer custom-made solutions according to your requirements: Extra large models up to 10 Liter and tailor-made software.
  • Labmixer b.v. reserves the right to make technical modifications to the various machine models without notification at any time.
